Audio-Technica - AT-VM740xML (Dual Moving Magnet Headshell/Cartridge Combo Kit with Nude Microlinear Stylus Red/Gold)

Audio-Technica - AT-VM740xML (Dual Moving Magnet Headshell/Cartridge Combo Kit with Nude Microlinear Stylus Red/Gold)

Format: Turntable Parts

UPC: 4961310163310

Release Date:

Condition: N

$309.00 USD
$309.00 USD $309.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

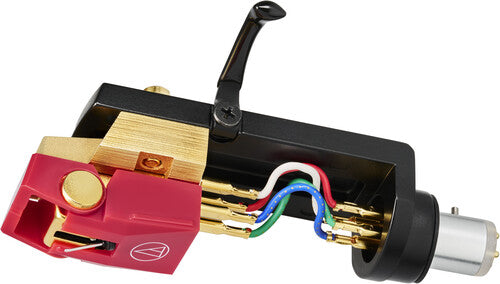

AT-VM740xML/H / Headshell/Cartridge Combo Kit

The AT-VM740xML/H combo kit includes the AT-VM740xML microlinear dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM740xML is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Features:

AT-VM740xML Dual Moving Magnet Cartridge

  • AT-VMx dual moving magnet cartridge with microlinear stylus
  • Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
  • Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
  • Center shield plate between the left and right channels reduces crosstalk for clear stereo sound
  • Die-cast aluminum housing reduces vibrations and resonance
  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms
  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
  • Aluminum tapered cantilever reduces mass near the stylus tip for quicker signal transmission
  • Compatible with any turntable headshell that accepts 1/2" cartridges
  • Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application

AT-LT10 Universal Headshell

  • Universal ½"-mount headshell for 4-pin turntable cartridges with or without threaded inserts
  • Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum
  • Elongated through holes enable precise cartridge positioning and overhang adjustment
  • OFC (oxygen-free copper) lead wires for exceptional sound quality
  • Slip-resistant finger lift allows stylus to be placed precisely on the record
  • Includes mounting screws

*Excludes mono models

Specifications:

  • Frequency Response: 20 to 25,000 Hz
  • Channel Separation: 25 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Tracking Force: 1.8 to 2.2 g (2.0 g standard)
  • Stylus Construction: Nude Microlinear
  • Recommended Load Impedance: 47 k ohms
  • Coil Impedance: 3.2 k ohms (1 kHz)
  • DC Resistance: 750 ohms
  • Coil Inductance: 480 mH (1 kHz)
  • Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
  • Output Balance: 1.0 dB (1 kHz)
  • Cantilever: Aluminum tapered pipe
  • Static Compliance: 20 × 10-6 cm/dyne
  • Dynamic Compliance: 7 × 10-6 cm/dyne (100 Hz)
  • Dimensions: 68.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
  • Recommended Load Capacitance: 150 to 250 pF
  • Replacement Stylus: AT-VMN40xML* (sold separately)
  • Stylus Curvature Radius: 2.2 × 0.12 mil
  • Type: VM
  • Weight: 20.3 g (0.72 oz)
