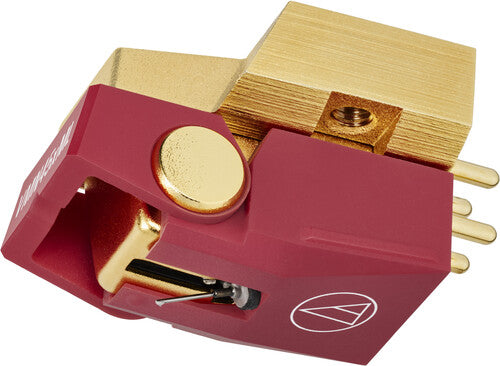

Audio-Technica - AT-VM745xML (Dual Moving Magnet Phono Cartridge with Nude Microlinear Stylus Crimson/Gold)
Audio-Technica - AT-VM745xML (Dual Moving Magnet Phono Cartridge with Nude Microlinear Stylus Crimson/Gold)
Format: Turntable Parts
UPC: 4961310163235
Release Date:
Condition: N
Out of stock
Couldn't load pickup availability
Share
AT-VM745xML / Dual Moving Magnet Cartridge
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
All VMx cartridges feature a generator with paratoroidal coil construction: two coils per channel – one stacked behind the other – for greatly improved efficiency. A center shield plate separates the left and right channels to reduce crosstalk and maintain a clear stereo image. The copper wire used for the coils has been upgraded to PCUHD® (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction.
The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy.
The new, lightweight microlinear stylus of the AT-VM745xML allows it to trace the record groove with incredible accuracy, resulting in audio reproduction that elliptical and conical styli simply can’t match. This nuanced reproduction is further enhanced by the adoption of a solid boron cantilever, which transmits signals about 2.5 times faster than the previous model’s aluminum pipe, resulting in more accurate reproduction of dynamic musical passages.
We’ve also added threaded inserts to the die-cast aluminum body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus’s flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.
Features:
- AT-VMx dual moving magnet cartridge with microlinear stylus
- Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
- Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove
- Solid boron cantilever quickly transmits vibrations from the record groove, ensuring accurate reproduction of dynamic musical passages
- Die-cast aluminum housing reduces vibrations and resonance
- Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
- PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Center shield plate between the left and right channels reduces crosstalk for clear stereo sound
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Compatible with any turntable headshell that accepts 1/2" cartridges
- Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application
*Excludes mono models
All in the Design
The Vertical Dual Magnet (MM) design closely mirrors the cutter head used to make the vinyl master. The cutter head uses two transducer coils, mounted perpendicular to each other at 45° from horizontal, to cut the channel: one in each wall of the 90° record groove. AT-VMx cartridges use the same 90° V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum.
Easy to Install & Use
Each VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.
Interchangeable Styli
Since all AT-VMx series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMx replacement stylus* with any VMx cartridge for easy experimentation with sound characteristics.
*Excludes mono models
Highly Efficient Generator
The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.
*Compared to VM series cartridges.
Solid Boron Cantilever and Metal Body
The three premium VMx models (AT-VM760x, AT-VM750x, AT-VM745x) feature a solid boron cantilever. Naturally lightweight and rigid, boron transmits signals from the record groove faster than an aluminum cantilever. The result is more accurate sound reproduction that’s particularly noticeable on dynamic musical passages. The die-cast aluminum body reduces vibrations and resonance.
Specifications:
- Frequency Response: 20 to 27,000 Hz
- Channel Separation: 26 dB (1 kHz)
- Vertical Tracking Force: 20°
- Tracking Force: 1.8 to 2.2 g (2.0 g standard)
- Stylus Construction: Nude Microlinear
- Recommended Load Impedance: 47 k ohms
- Coil Impedance: 3.2 k ohms (1 kHz)
- DC Resistance: 750 ohms
- Coil Inductance: 480 mH (1 kHz)
- Output Voltage: 3.7 mV (1 kHz, 5 cm/sec.)
- Output Balance: 1.0 dB (1 kHz)
- Cantilever: 0.28 mm (0.011”) diameter solid boron
- Static Compliance: 20 × 10-6 cm/dyne
- Dynamic Compliance: 7 × 10-6 cm/dyne (100 Hz)
- Dimensions: 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)
- Threaded Hole: M2.6 × 2
- Recommended Load Capacitance: 150 to 250 pF
- Replacement Stylus: AT-VMN45xML* (sold separately)
- Stylus Curvature Radius: 2.2 × 0.12 mil
- Type: VM
- Weight: 8.8 g (0.31 oz)
Accessories Included: Cartridge installation screws (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush
